Delta DT Series DTK Temperature Controller
Delta DT Series DTK Temperature Controller
Delta DT Series Temperature Controller
Brand: Delta
100% New and Original
Description

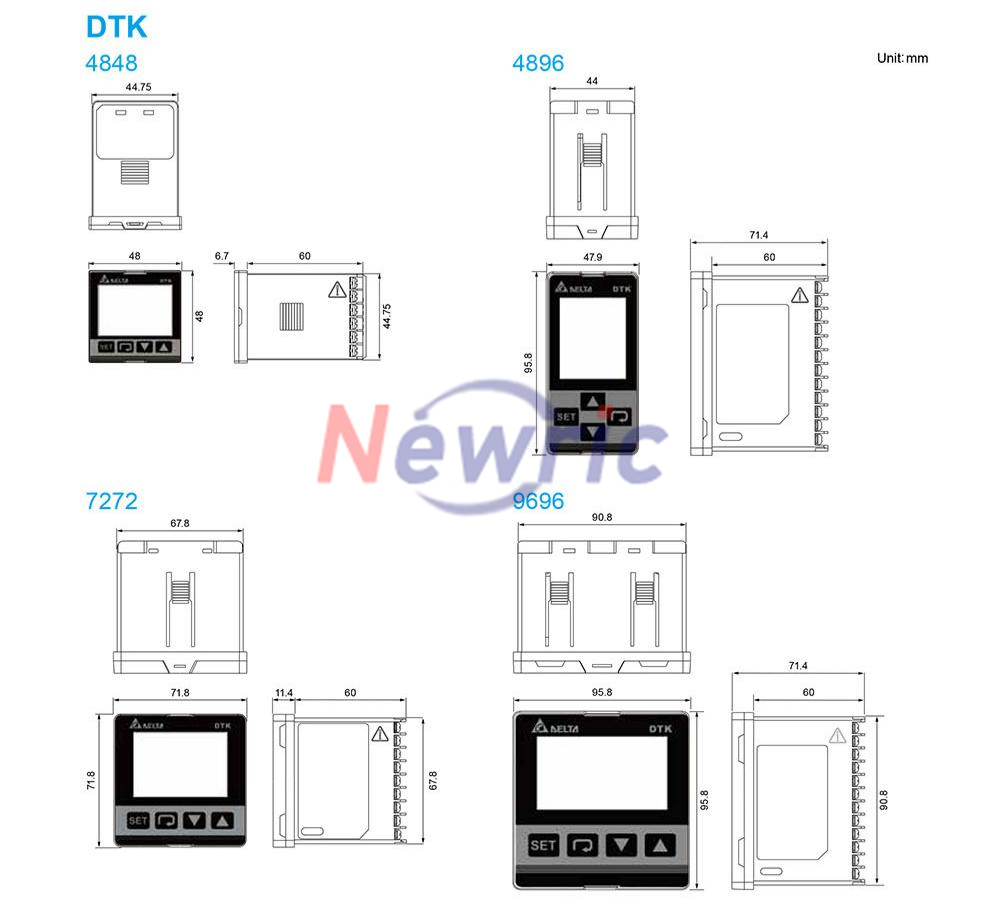

Many Sizes Available：
From 48x 24mm to 96 x 96 mm, all panel sizes comply with international standards.
Quality Assurance:
All temperature controllers adopt an isolated switching power supply. 100~240Vac/24Voc input power supply applicable in all countries of the world. CE,ULand C-Tick certified.
Supports Various Sensors:
Built-in various sensor input modes: Thermocouple, platinum RTD or linear voltage/current
Various Output Modes:
Relay, voltage pulse, linear voltage, and linear current.
Stable Control:
Built-in PiD control function with accurate auto-tuning (AT). PlD parameters are automatically calculated, enhancing the stability of the system and accuracy of control.
Current Transformer (CT):
CT can enable the off-line alarm and detect overloaded current.
Programmable control:
Max. 8 patterns available, with 8 steps in each pattern for planning various temperature control curves, no need for a master controller.
Communication:
RS-485 communication interface, supporting Modbus ASCll/RTU communication.
Safety:
The key-locking function and communication protection prevent incorrect operations.
Dual Output Control:
Controls heating and cooling simultaneously to rapidly reach the set temperatures.
