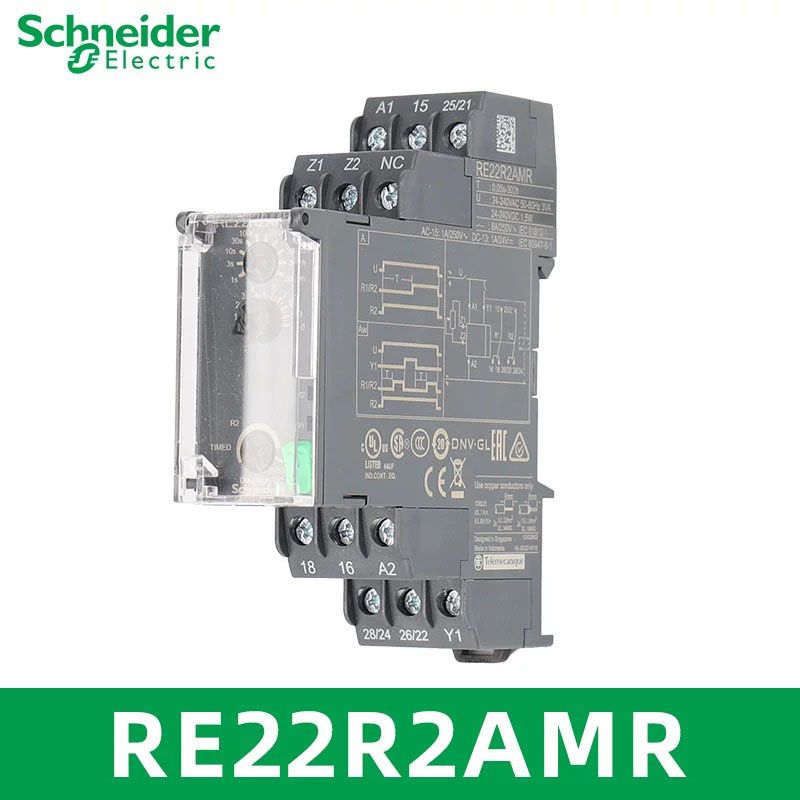

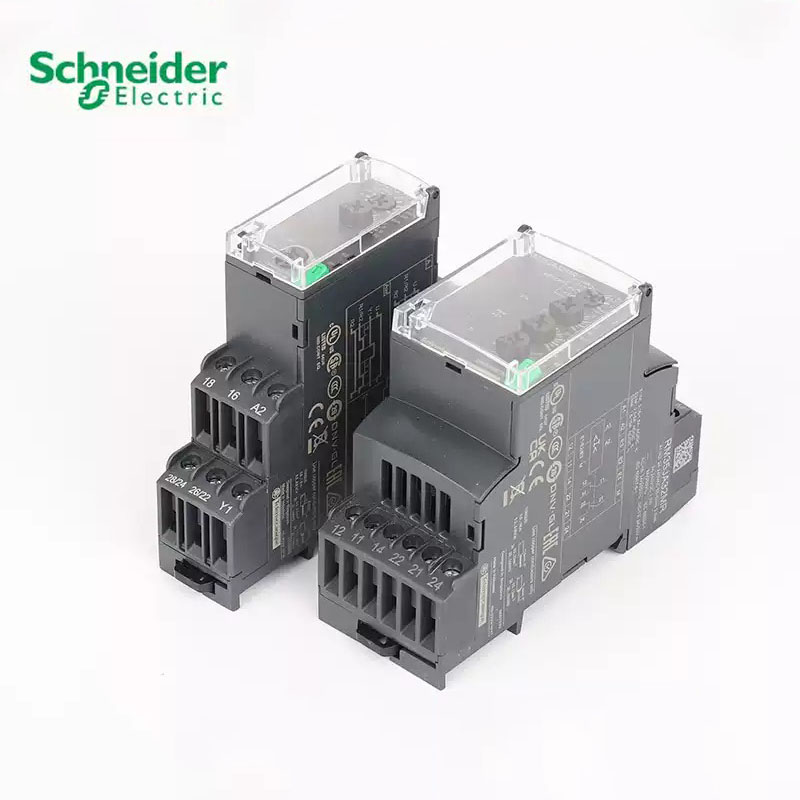

Schneider RE22R2AMR Supplier dual function relay, 8A, 2CO, 0.05s-300h, power on delay, 24…240V AC DC

Brand: Schneider
100% New and Original

Range of product：Harmony Timer Relays
Width：22.5 mm
Product or component type：Power on-delay
Component name：RE22

Time delay type：Power on-delay
Time delay range：
0.05…1 s
0.3…3 s
3…30 h
30…300 min
10…100 s
30…300 s
3…30 s
30…300 h
1…10 s
3…30 min
nominal output current：8 A

Contacts type and composition：1 C/O timed contact, cadmium free
1 C/O timed or instantaneous contact, cadmium free

This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours. It provides function A and function Aw and it is mountable on DIN rail. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
