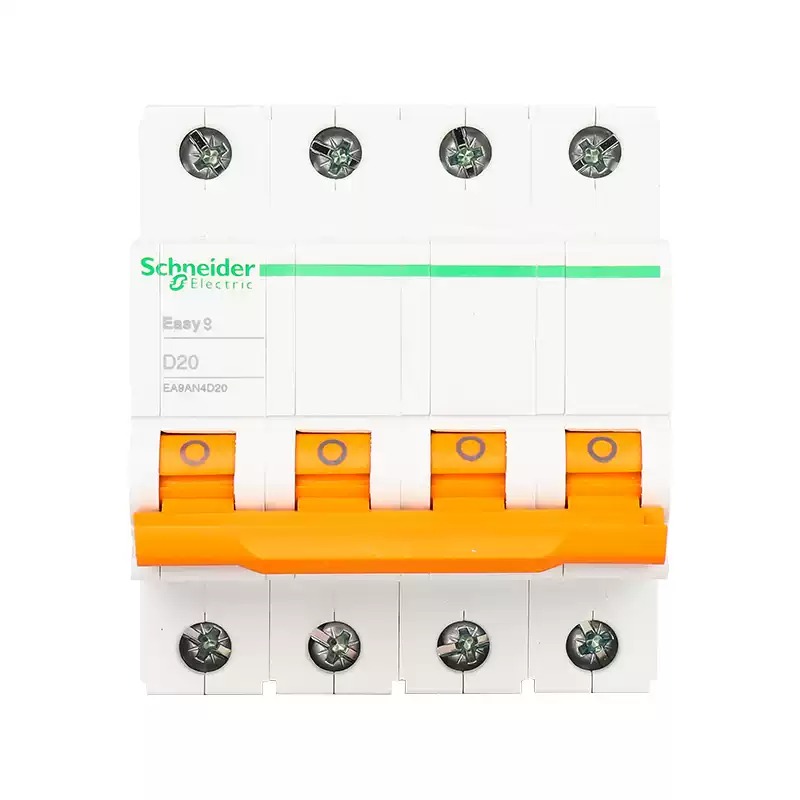

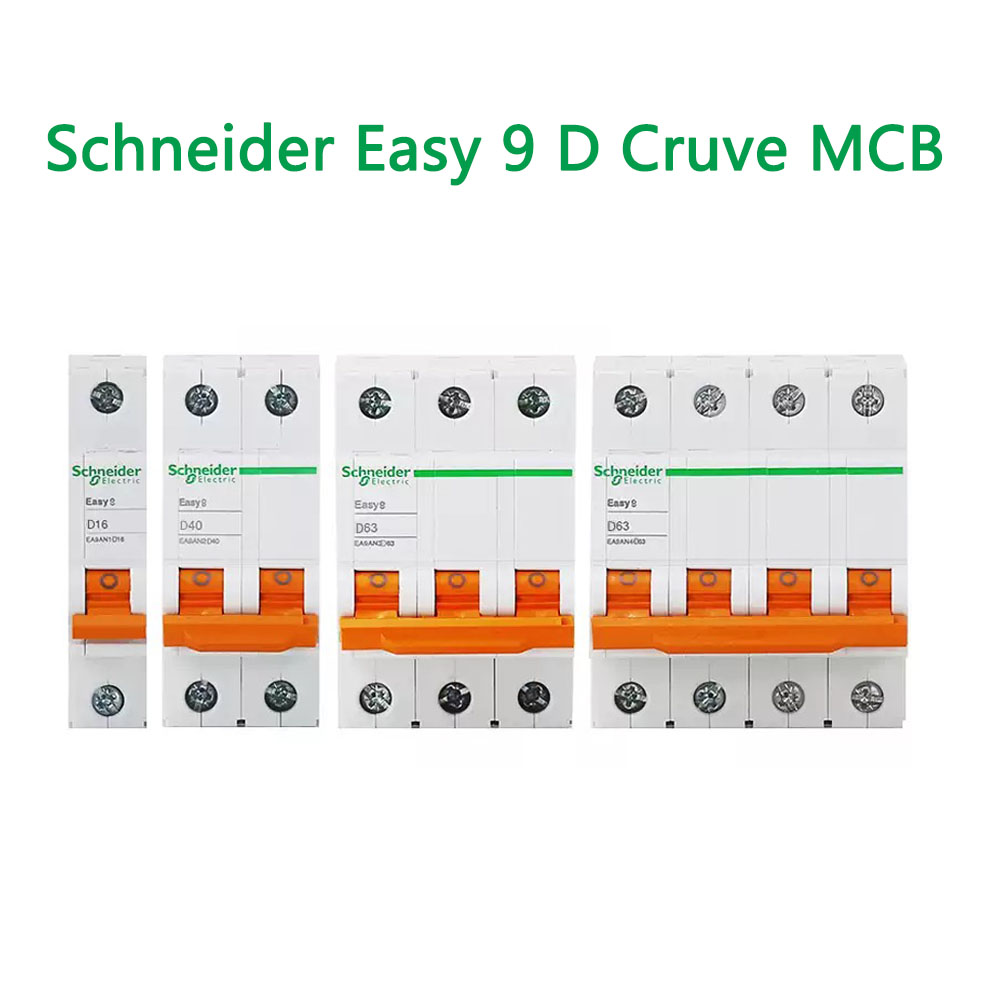

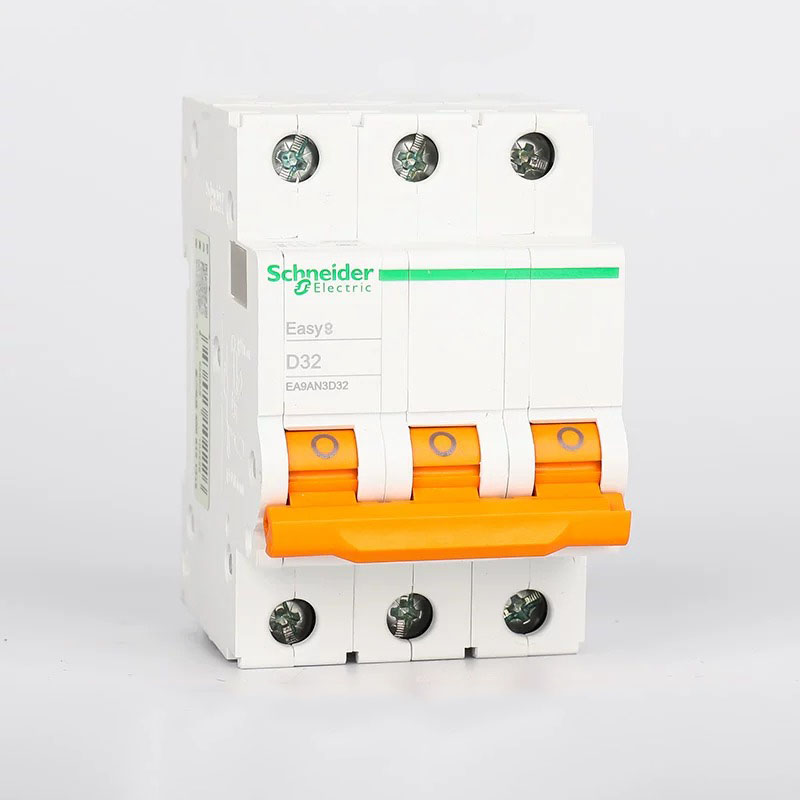

Schnieder Easy 9 D curve MCB Miniature Circuit Breaker 1P 2P 3P 4P
Schnieder Easy 9 D curve MCB Miniature Circuit Breaker 1P 2P 3P 4P
Brand: Schneider
100% New and Original
Easy 9 circuit breakers have the following functions:
– Short circuit protection
– Overload protection
– Control functions
– Isolation function
Compliant with standards: GBIT 10963/IEC 60898
Rated voltage: 230/400VAC
Rated current: 6-63 A
Breaking capacity: 6000A
Trip characteristics: C(5-10)In, D(10-14)In

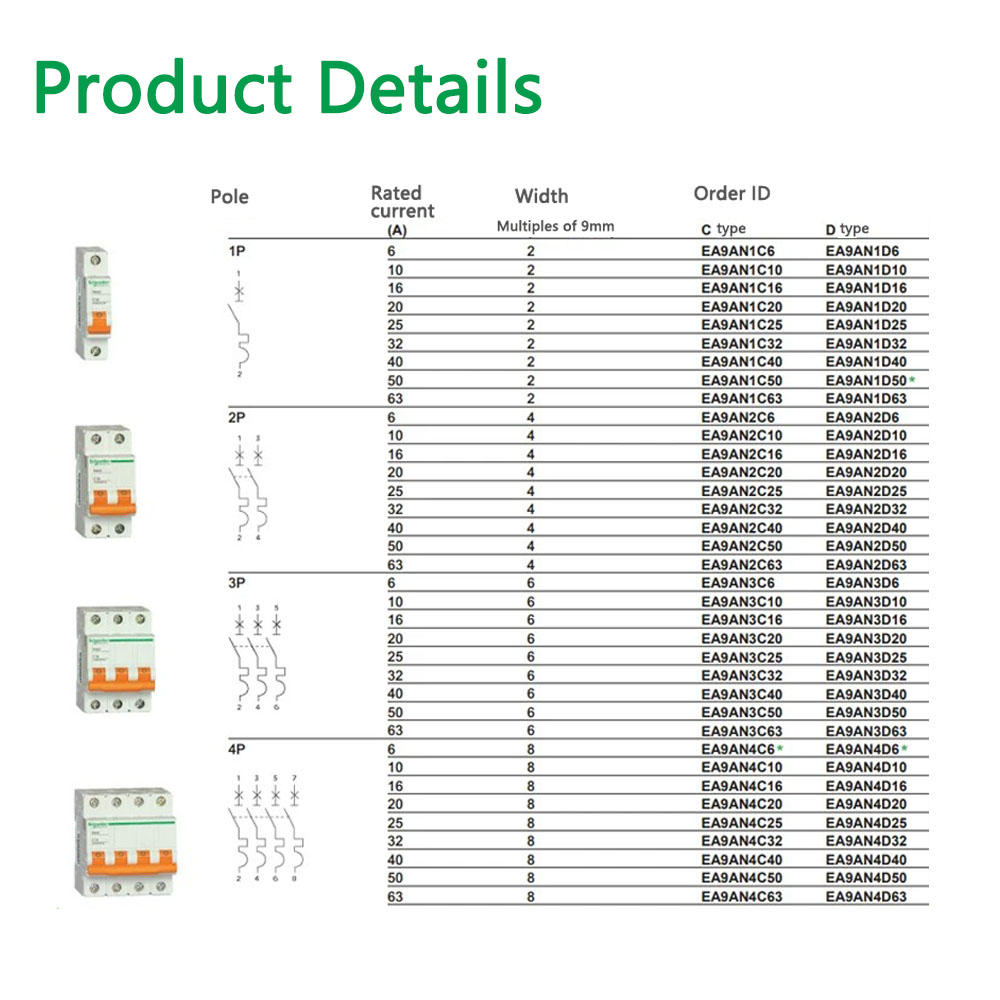

Number of poles: 1P-4P
Current limiting class: 3
Fast closing
Maximum operating voltage: 440VAC
Impulse withstand voltage: 6 kV
Electrical life: 10,000 cycles
Mechanical life: 20,000 cycles
Operating temperature: -30°C to +70°C
Storage temperature: -40°C to +85°C
Damp heat resistance: Class 2 (at 55°C and 95% relative humidity)
Wiring and installation:
Tunnel terminal block
Terminal wiring area:
-6~32A, suitable for 25 mm² and below conductors
-40~63 A, suitable for 35 mm² and below conductors
Modular structure, easy to install on DIN standard rails
