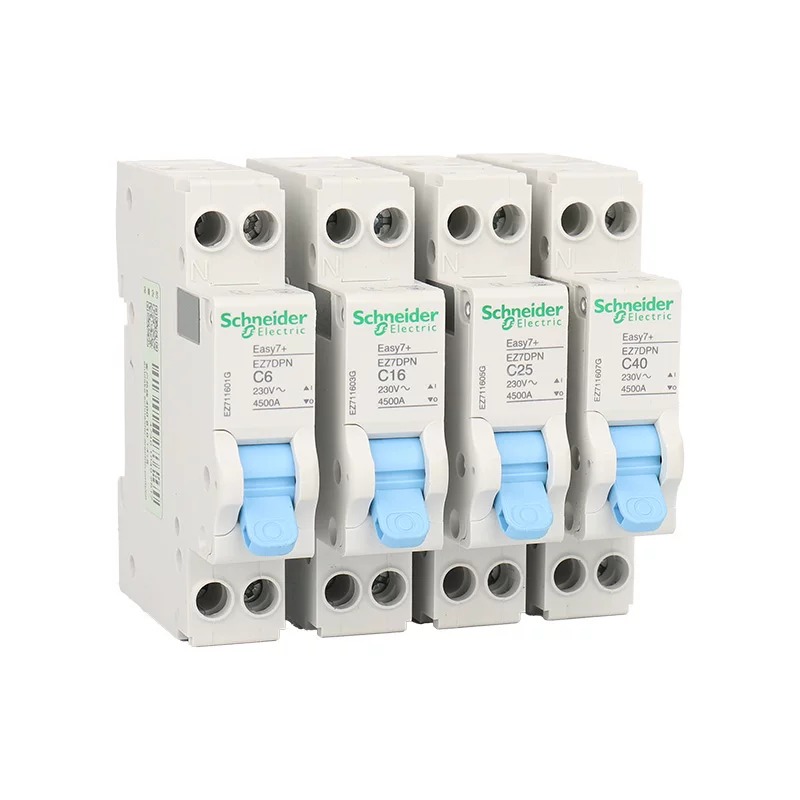

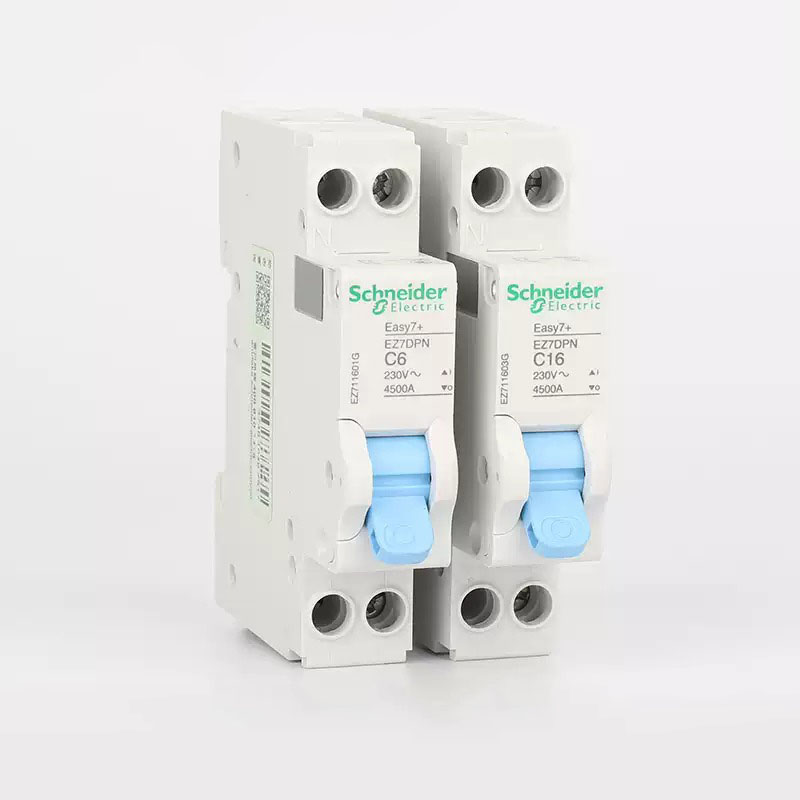

Schneider Electric Easy 7 DPN Miniature Circuit Breaker (18mm) 4.5KA 1P+N MCB
Schneider Electric Easy 7 DPN Miniature Circuit Breaker (18mm) 4.5KA 1P+N MCB
Brand: Schneider
100% New and Original
The Easy 7 DPN “Phase + Neutral” miniature circuit breaker is used for overload and short-circuit protection of terminal lines. It can simultaneously disconnect the phase and neutral lines, but the neutral line does not provide protection.
Technical parameters:
Rated insulation voltage (Ui): 500VAC
Impulse withstand voltage (Uimp): 4kV
Rated operating voltage: 230 VAC
Rated operating frequency: 50/60 HZ
Rated current: 6.40A
Number of poles: 1P+N
Trip characteristic: C curve (5~10)In
Breaking capacity Icn
Ph/N (1P+N), operating voltage (Ue) 230V
Rated current (ln) 6-40A, operating voltage (Ue) 4500A/6000A
Pollution degree: 2
CCC certification obtained
Other parameters:
Reference setting temperature: 30°C
Damp heat resistance: Class 2 (at 55°C and 95% relative humidity)
Ambient temperature: -25°C to +60°C
Altitude: ≤2000m
Lifespan (O-C):
Electrical life: 10,000 cycles
Mechanical life: 20,000 cycles
