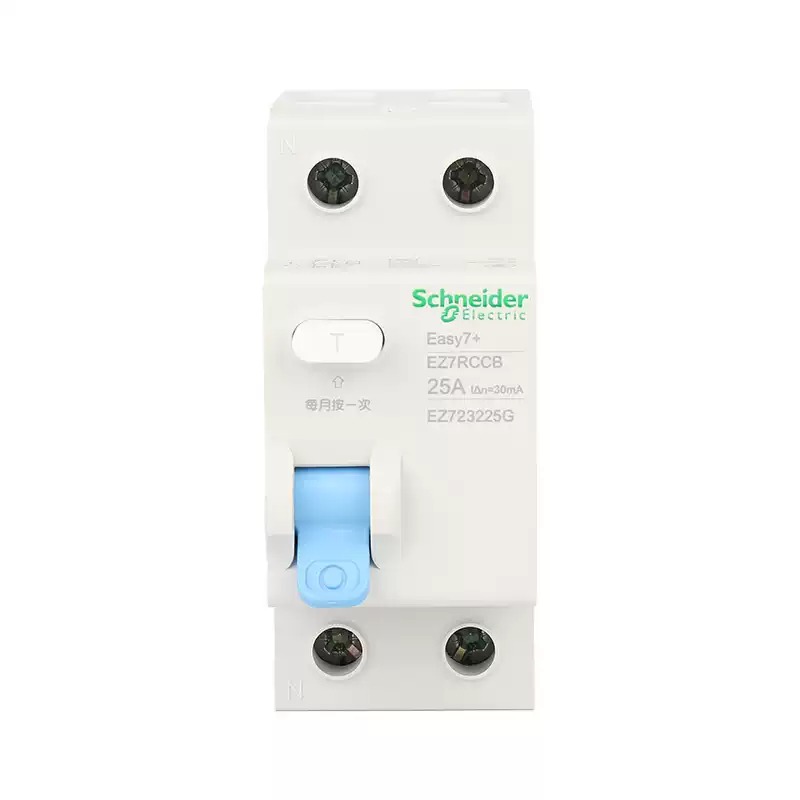

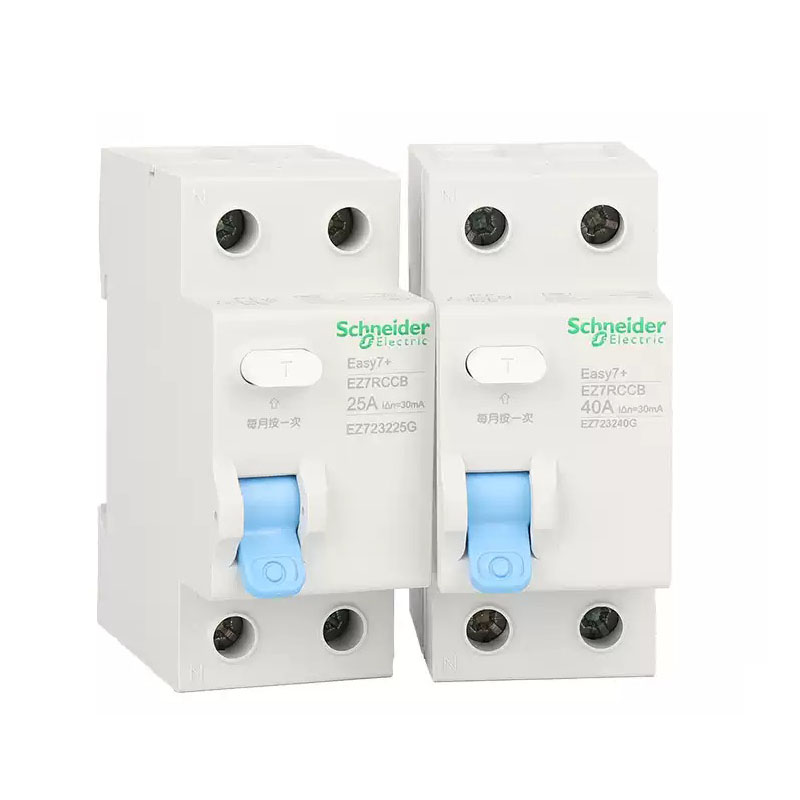

Schnieder Easy 7 RCCB Electronic Miniature Residual Current Circuit Breaker
Schnieder Easy 7 RCCB Electronic Miniature Residual Current Circuit Breaker
Brand: Schneider
100% New and Original
The EZ7 RCCB operated switch has the following functions:
– When an insulation fault occurs between a phase line and ground and the residual operating current exceeds the set value, it automatically disconnects the faulty circuit.
– Used for residual current operated protection in low-voltage terminal distribution systems in residential, civil buildings, and industrial fields.
Technical Parameters:
Rated Insulation Voltage (Ui): 500 V
Impulse Withstand Voltage (Uimp): 4 kV
Wiring Method: Top In, Bottom Out
Rated Operating Frequency: 50 Hz
Rated Residual Operating Current: 30mA, Class A
Rated Operating Voltage (Ue): 230VAC

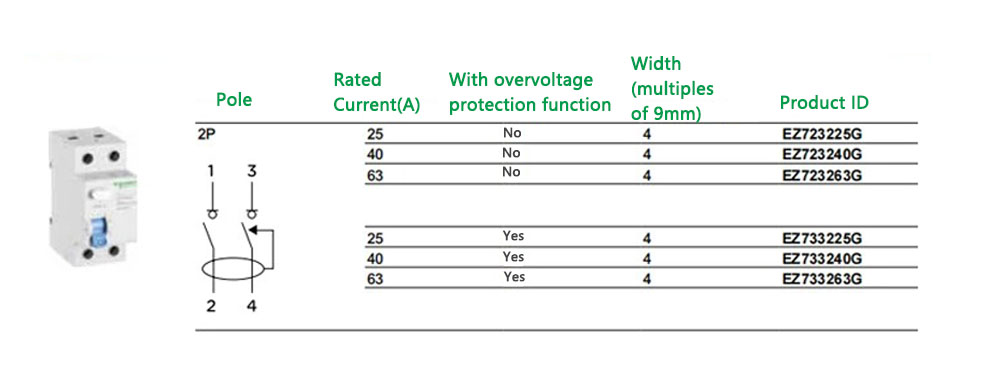

Rated Current: 25, 40, 63 A
Type G Overvoltage Protection Operating Value: 280±5%VAC
Electronic Residual Current Operated Switch
Number of Poles: 2P
Pollution Degree: 2
CCC Certification Obtained
Other Parameters:
Rated reference temperature: 30°C
Damp heat resistance: Class 2 (at 55°C, 95% relative humidity)
Ambient temperature: -25°C to +60°C
Altitude: ≤2000m
Life: (O-C)
Electrical life: 10,000 cycles
Mechanical life: 20,000 cycles

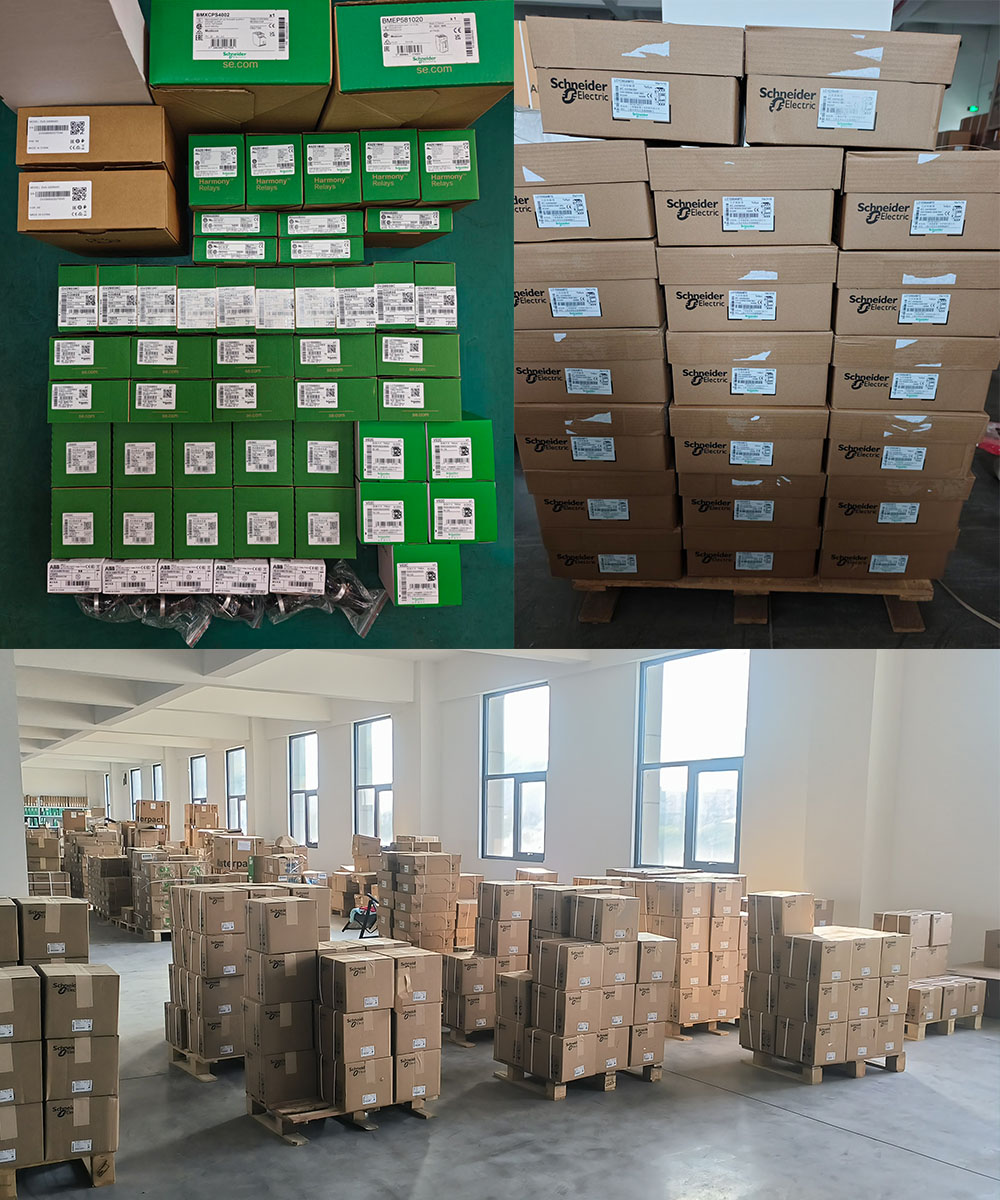

Our Schneider Werehouse
